Magnum Energy Router and Remote Comparison

Download Router and Remote Comparison as a PDF


	ME-ARTR	ME-RTR	ME-ARC50	ME-RC50	ME-MR25	MM-RC25	MM-R25

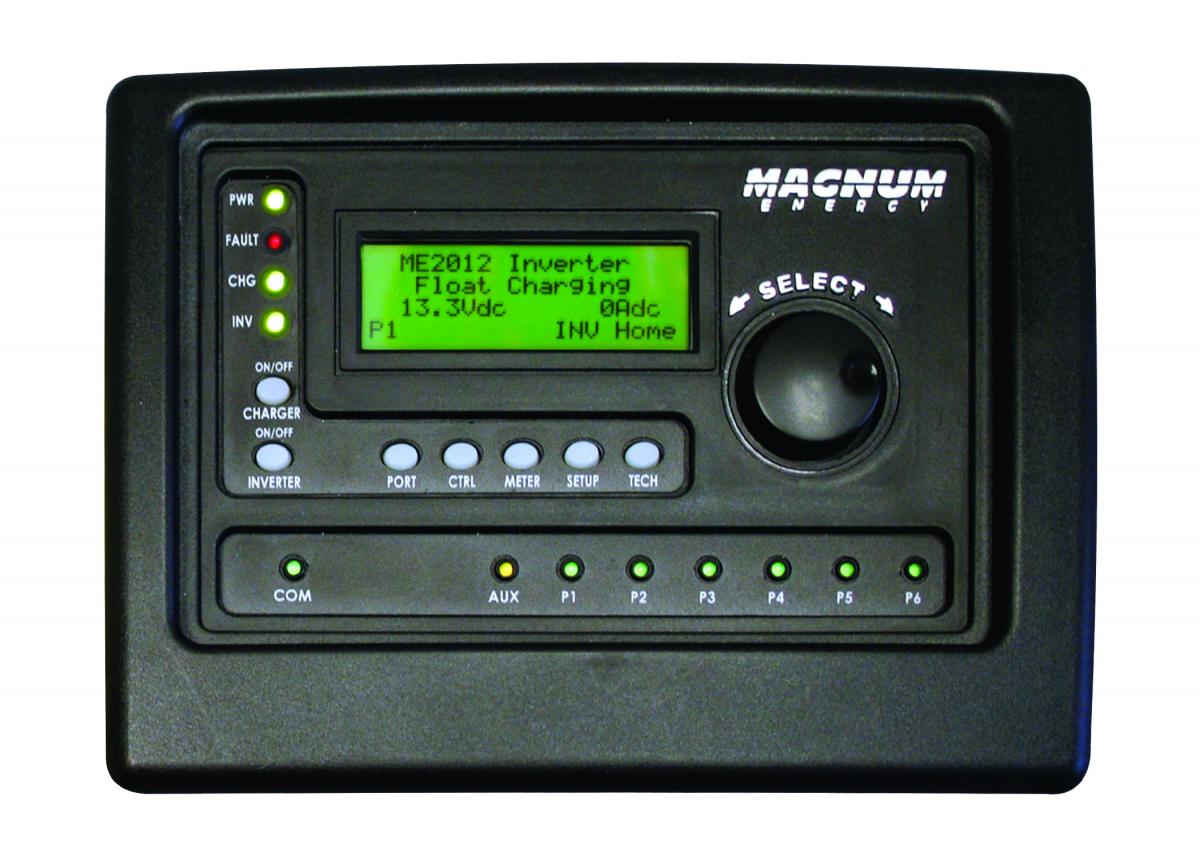

	Advanced router provides system-level connectivity and programming for large Magnum Energy installations. Works with MMP and MP Panels, MS-PAE and MS-PE inverter/chargers, PT-100 charge controller, ME-AGS, ME-BMK, ME-ARC, and ME-RC remote controls.	NOTE: Model no longer available. The ME-ARTR Advanced Router replaces this model. Router designed to work with MS-PAE or MS-PE inverter/chargers when stacked in parallel.	Advanced remote control for easy control via a rotary knob of a Magnum inverter/charger, ME-AGS-N, and ME-BMK.	Remote control designed for easy use with a rotary knob. Works with Magnum inverter/chargers, ME-AGS-N, and ME-BMK.	Remote control designed to control a Magnum Energy inverter/charger.	Simple on/off control for Magnum MM Series inverter/chargers.	Simple on/off control for Magnum MM Series inverters.
	8.94” x 6.63” x 1.94” (22.7 x 16.8 x 4 cm)	8.94” x 6.63” x 1.94” (22.7 x 16.8 x 4 cm)	3.63” x 5.63” x 1.00” (9.2 x 14.3 x 2.5 cm)	3.63” x 5.63” x 1.00” (9.2 x 14.3 x 2.5 cm)	3.00” x 2.88” x 1.25” (7.6 x 7.3 x 3.2 cm)	2.88” x 1.75” x 1.25” (7.3 x 4.4 x 3.2 cm)	2.88” x 1.75” x 1.25” (7.3 x 4.4 x 3.2 cm)
System-wide visibility and programming•	•
Inverter control and display	•	•	•	•	•	•
Independent control	•	•	•	•	•	•
Menu-driven set-up and troubleshooting	•	•	•	•	•
LCD \| rotary knob	•	•	•	•
Non-volatile memory	•	•	•	•	•	•	•
Independent display of inverter and charger	•	•	•	•
Advanced inverter, BMK, AGS-N set-up menus (system control)	•	•	•
Multiple battery bank monitoring	•	•
Parallel stacking: inverters	•	•
Stacking up to seven PT-100 charge controllers	•
Field upgradeable with microSD card	•
